Pricing
Price £4000.00
Offer £3600.00
In stock - Test ride model available
Test ride model available.

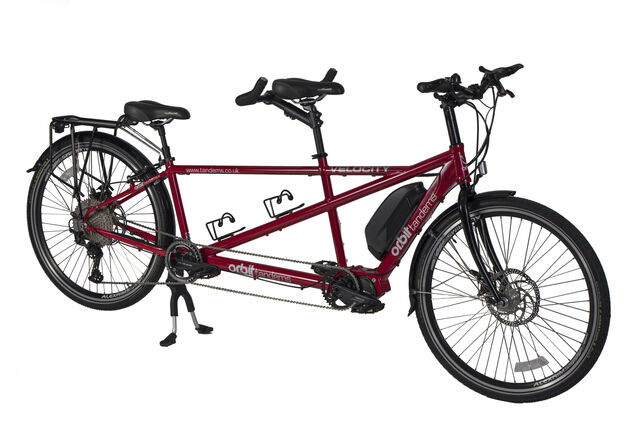

The Velocity E6100 is designed and built in the Yorkshire Dales using Shimano's E6100 mid-drive motor and is perfectly suited to the hills. The low gearing will take you up the steepest of climbs and the 3 brakes will take you down the steepest of descents with confidence.

The Velocity can take plenty of luggage with the front fork being rack compatible too, and it's 48 spoke wheels make it a great touring machine.

The Velocity is assembled for each customer so we can customise it to suit you exactly, drop handlebars are an option on the front as well.

Weight, as pictured, 26.81kg, length 252cm or 250cm with a 38c tyre.

A drop handlebar model is available at an extra cost of £300.

Orbit Velocity Electric Tandem from JD Tandems on Vimeo.

Specifications
Ask Us
Reviews
Related
Options 19/15" Satin black
21/17" Satin black
19/15" Gloss red
21/17" Gloss red
Description Comes with 418wh battery & lighter weight charger
Frame Orbit lightweight aluminium
Forks Orbit full chromoly steel disc
Rear Derailleur Shimano Deore 11 speed
Front Derailleur None
Shifters Shimano Deore 11 speed right hand shift lever
Chainset (Pilot) Shimano 170mm crank length with Steps E6100 motor
Chainset (Stoker) Orbit & 38 tooth drive ring
Bottom Bracket (Pilot) Alloy eccentric
Bottom Bracket (Stoker) Square taper 115mm
Chain (Crossover) KMC nickel plated 160 link
Chain (Rear) KMC E11 speed
Cassette Shimano cassette 11 speed 11/42
Pedals (Pilot) Alloy touring with strapless toe cups
Pedals (Stoker) Alloy touring with strapless toe cups
Front Brake Bengal cable pull disc brake, with 203mm rotor
Rear Brake Bengal cable pull disc brake, with 203mm rotor
3rd Brake Shimano V brake, controlled from the front handlebars with Shimano friction lever
Brake Levers Shimano

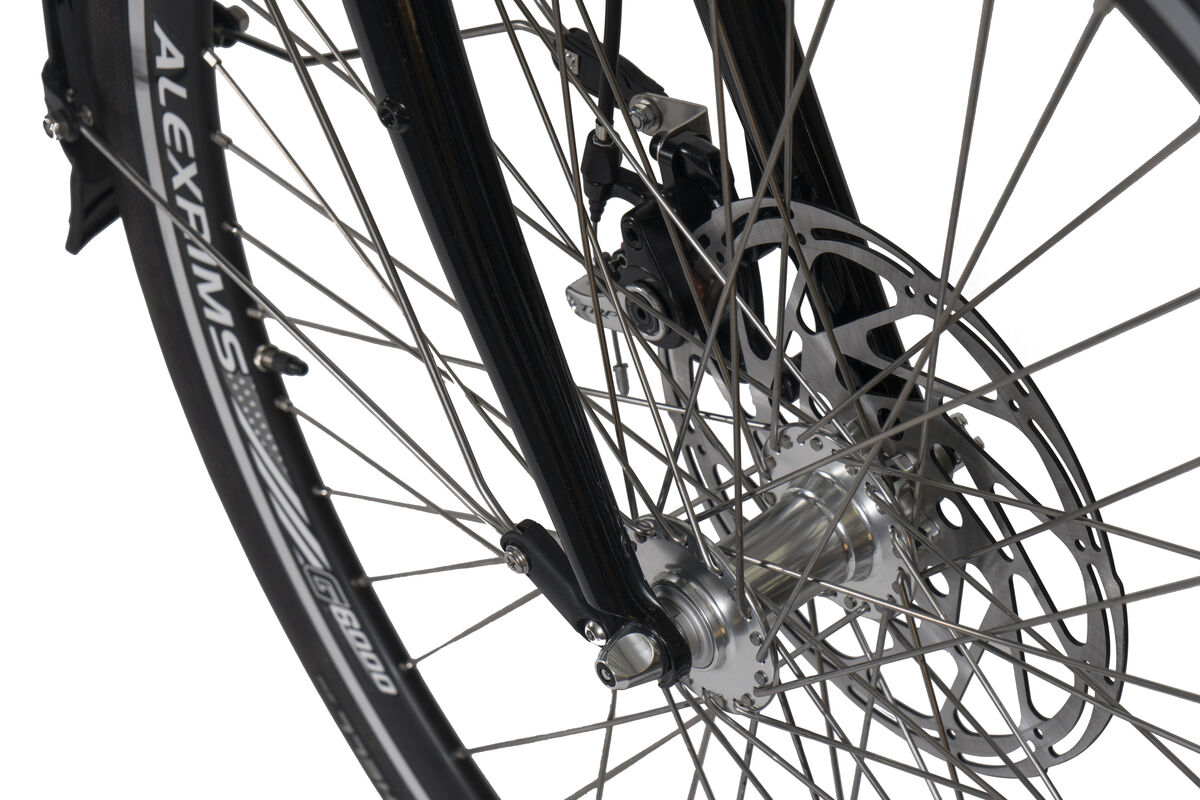

Front Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc 48 hole
Rear Hub Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD 48 hole
Rims Deep section aero
Spokes Sapim Strong butted stainless
Tyres Schwalbe Marathon E plus 700 x 38c or 47c
Headset Tange 1 1/8" semi intergated, cartridge bearing
Stem (Pilot) Satori 31.8mm ahead
Stem (Stoker) Orbit adjustable, 160mm to 200mm
Handlebars (Pilot) Zoom black riser, 31.8 clamp size
Handlebars (Stoker) Black alloy stoker bars, 25.4 clamp size, 49cm external width & 4.5cm stoker riser
Saddle (Pilot) Velo plush comfort touring
Saddle (Stoker) Velo plush comfort touring
Seatpost (Pilot) Black alloy, 400mm x 27.2
Seatpost (Stoker) Elegance suspension seat post 40mm travel
Grips (Pilot) Wave ergo lock-on with integrated bar ends
Grips (Stoker) Velo black cork bar tape with under bar gel
Pannier Rack (Front) -
Pannier Rack (Rear) Black alloy 3 leg
Bottle Cages 2 alloy
Mudguards Black or silver with stainless steel fittings

Prop stand included
Extras Every Orbit Tandem is built to order, so should you wish to change any part of the specification please get in touch.

Planning a trip? Additional batteries are available to hire please ask for further details.

Can be built into a drop handlebar model for an extra £200
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
