Orbit Velocity electric assist Steps EP801 Sram
Pricing
Price £6950.00
In stock - test ride model available
The Velocity Steps EP801 is our flagship electric assist model in the Orbit range.Built using a lightweight aluminium frame, the tandem uses the Shimano Steps EP801 250W motor and a 630 Wh battery.
Battery weighs 3.5kg, and takes 5 hours for a full charge, however, it is 80% charged after the initial 2 1/2 hours.
Range of course depends upon rider weight, wind, tyre selection & altitude gain, but it can be as much as 80 miles per charge.
The 250W motor is the highest output system that is road legal in the UK, giving up to 85Nm of torque. The EP801 is the top end system Shimano produce and has the greatest amount of torque of all of their systems which makes it very suitable for tandem use.
This type of electric assist is called a mid-drive system, the engine runs through the gears, and correct use of the gears when climbing make the system really efficient, and allows a light weight motor to be used whilst still giving out a great amount of torque, which is needed for pedalling up the hills.
Built in North Yorkshire, and finished with top quality components from Shimano the Steps EP801 is designed for couples who want a high performance electric assist tandem.
Sram GX Eagle AXS wirless gearing and Hope Tech 4 V4 hydraulic disc brake make this model amazing.
Wheels size 700c.
48-spoke wheels.
Weight, as pictured, 28.1kg
Specifications
Ask Us
Reviews
Related
| Options | 19/15" Satin black 21/17" Satin black 19/15" Gloss maroon red 21/17" Gloss maroon red |
|---|---|
| Frame | Orbit lightweight aluminium |
| Forks | Orbit full chromoly steel disc |

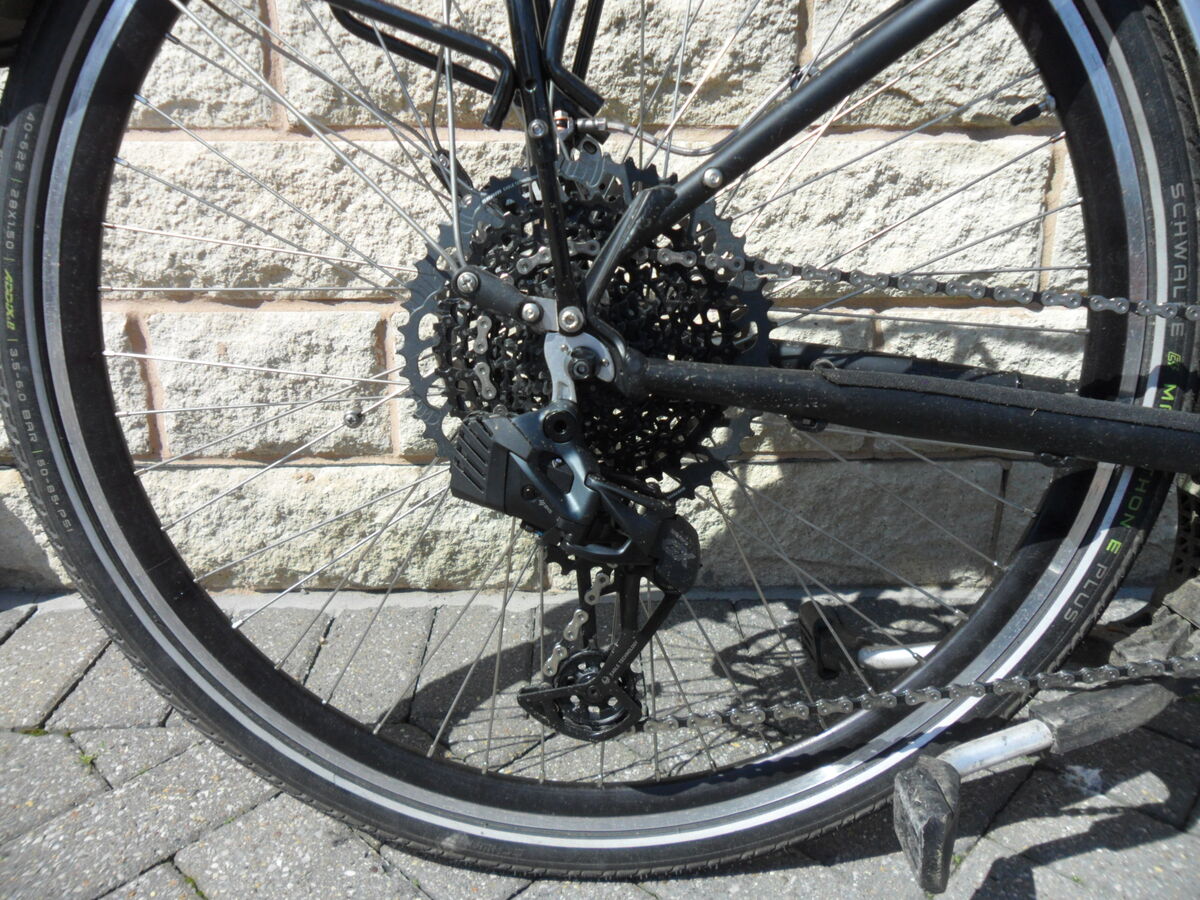

| Rear Derailleur | Sram GX Eagle wireless |
| Front Derailleur | None |
| Shifters | Sram GX Eagle AXS 12 speed right hand shift lever |
| Chainset (Pilot) | Shimano 170mm crank length with Steps EP801 motor and chain guard |
| Chainset (Stoker) | Orbit 170mm crank length 42 tooth drive ring and chain guard |
| Bottom Bracket (Pilot) | Steps |
| Bottom Bracket (Stoker) | Alloy eccentric & Shimano square taper UN300 115mm |
| Chain (Crossover) | KMC E1 nickel plated 160 link |
| Chain (Rear) | Sram GX Eagle 12 speed |
| Cassette | 12 speed Sram Eagle 10-52 |
| Pedals (Pilot) | Alloy touring with strapless toe cups |
| Pedals (Stoker) | Alloy touring with strapless toe cups |

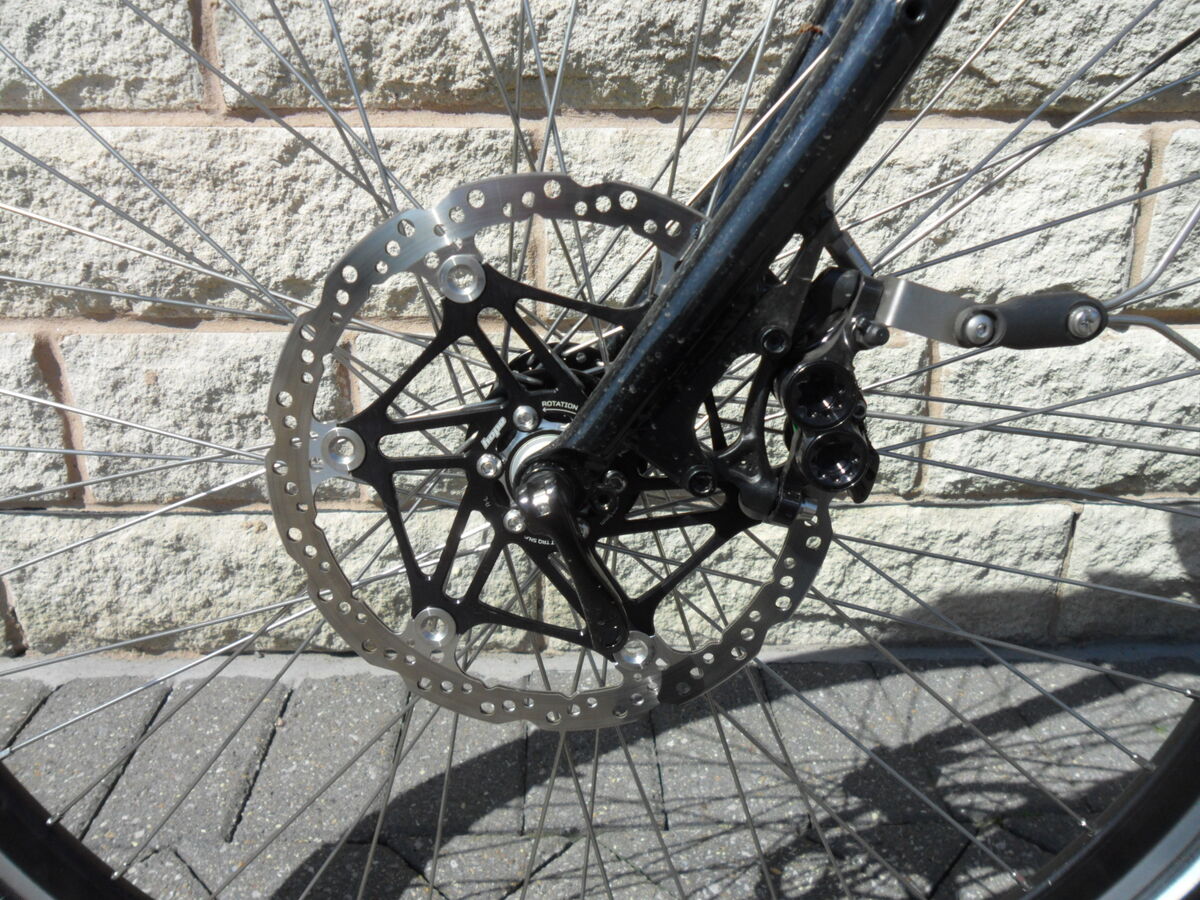

| Front Brake | Hope hydraulic Tech 4 V4 with 203mm vented rotor and braided hose |
| Rear Brake | Hope hydraulic Tech 4 V4 with 203mm vented rotor and braided hose |
| 3rd Brake | Shimano V brake, controlled from the front handlebars with Shimano friction lever |

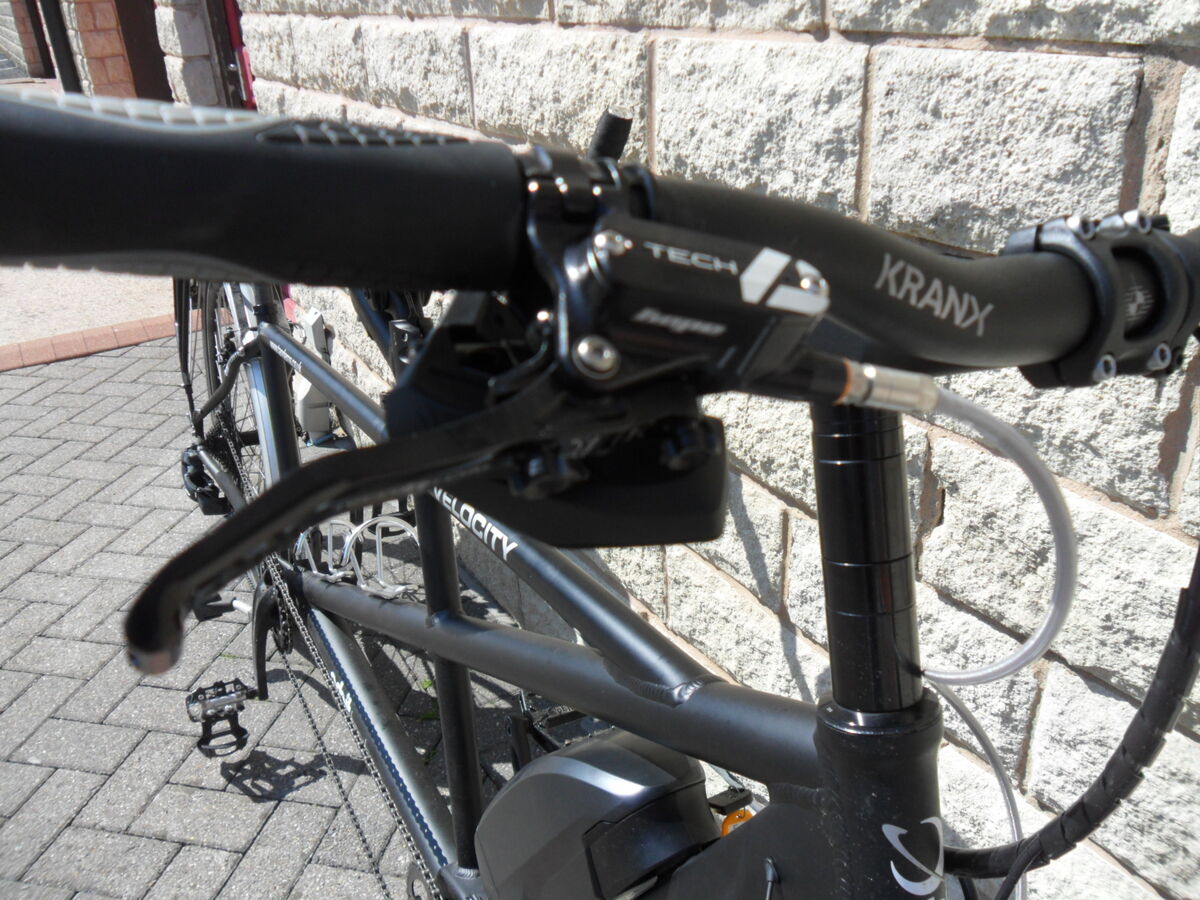

| Brake Levers | Hope hydraulic |
| Front Hub | Halo large flange, cartridge bearing, 6 bolt disc 48 hole |
| Rear Hub | Orbit heavy duty with XD hub body, large flange, cartridge bearing, 6 bolt disc, 145mm OLD 48 hole |
| Rims | Alex G6000 deep section aero |
| Spokes | Sapim Strong butted stainless |
| Tyres | Schwalbe Marathon E plus 700 x 38c |
| Headset | Tange Thunda 1 1/8" semi intergated, cartridge bearing |
| Stem (Pilot) | Satori 31.8mm ahead |
| Stem (Stoker) | Orbit adjustable, 160mm to 200mm |
| Handlebars (Pilot) | Zoom black riser, 31.8 clamp size |
| Handlebars (Stoker) | Black alloy stoker bars, 25.4 clamp size, 49cm external width & 4.5cm stoker riser |
| Saddle (Pilot) | Velo plush comfort touring |
| Saddle (Stoker) | Velo plush comfort touring |
| Seatpost (Pilot) | Black alloy, 400mm x 27.2 |
| Seatpost (Stoker) | Elegance suspension seat post 40mm travel |
| Grips (Pilot) | Wave ergo lock-on with integrated bar ends |
| Grips (Stoker) | Velo black cork bar tape |
| Pannier Rack (Front) | - |
| Pannier Rack (Rear) | Black alloy 3 leg |
| Bottle Cages | 2 alloy |
| Mudguards | Black or silver with stainless steel fittings Prop stand included |
| Extras | Every Orbit Tandem is built to order, so should you wish to change any part of the specification please get in touch. Planning a trip? Additional batteries are available to hire please ask for further details. |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
