Orbit Lightning electric assist Bosch Sram

Orbit Lightning electric assist Bosch Sram click to zoom image
Orbit Lightning electric assist Bosch Sram click to zoom image
Orbit Lightning electric assist Bosch Sram click to zoom image
Orbit Lightning electric assist Bosch Sram click to zoom image
Pricing
Price £7450.00
Offer £6705.00
Test ride model available
The Lightning Bosch Performance Line CX Smart, is the newest addition to the Orbit electric assist range.

The frames are arriving in January 2024, and build time will be about 2 weeks.

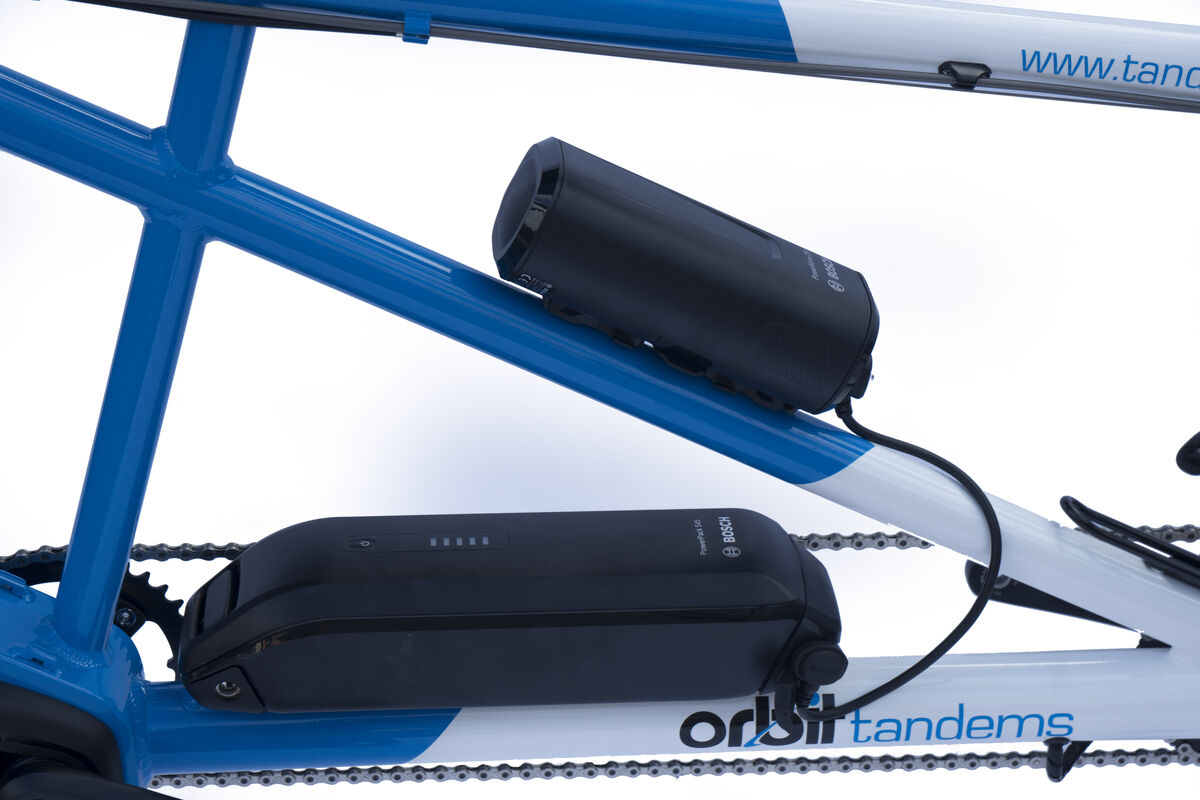

Built using a lightweight aluminium frame, the tandem uses the Bosch Perfomance Line CX 250W motor and comes with a 545wh battery. At an extra cost a powermore battery will be available which gives a further 250wh of range.

Battery weighs 2.9kg, and takes 4.9 hours for a full charge, however, it is 50% charged after the initial 1.8 hours.

Range of course depends upon rider weight, wind, tyre selection & altitude gain, but it can be as much as 70 miles per charge.

The 250W motor is the highest output system that is road legal in the UK, giving up to 85Nm of torque.

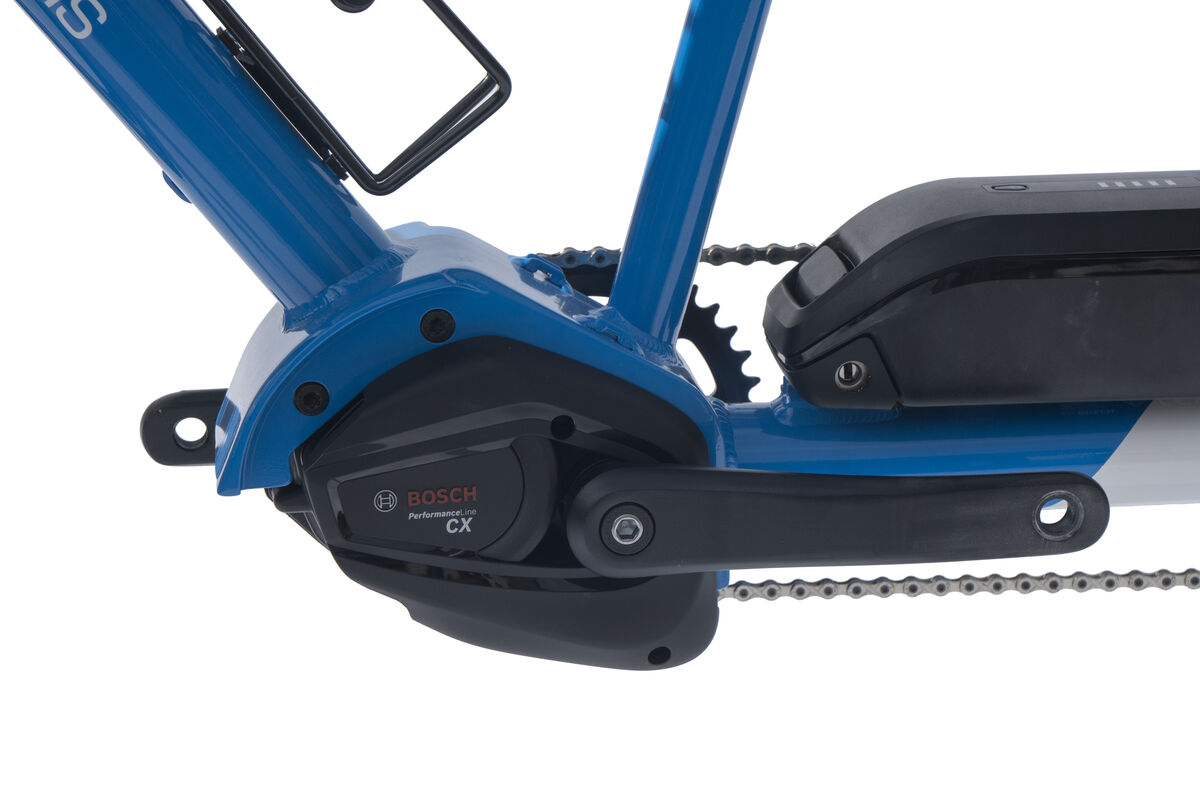

This type of electric assist is called a mid-drive system, the engine runs through the gears, and correct use of the gears when climbing make the system really efficient, and allows a light weight motor to be used whilst still giving out a great amount of torque, which is needed for pedalling up the hills.

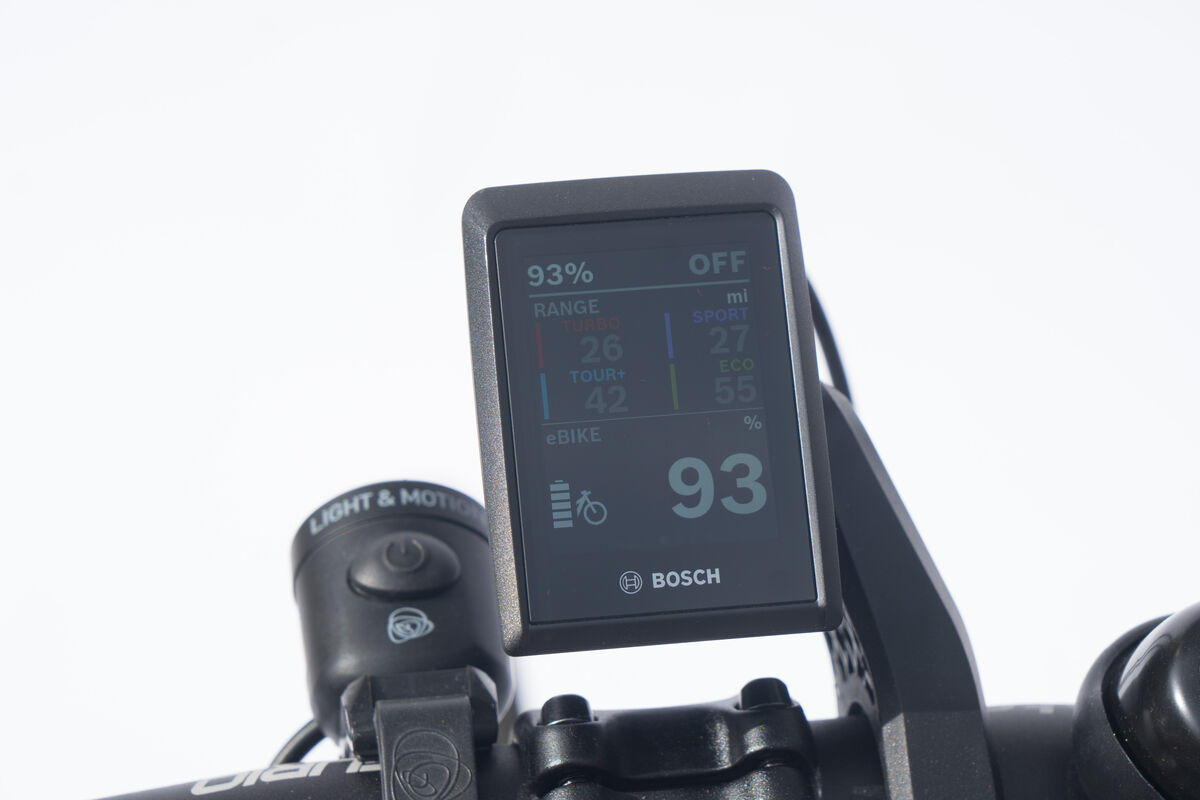

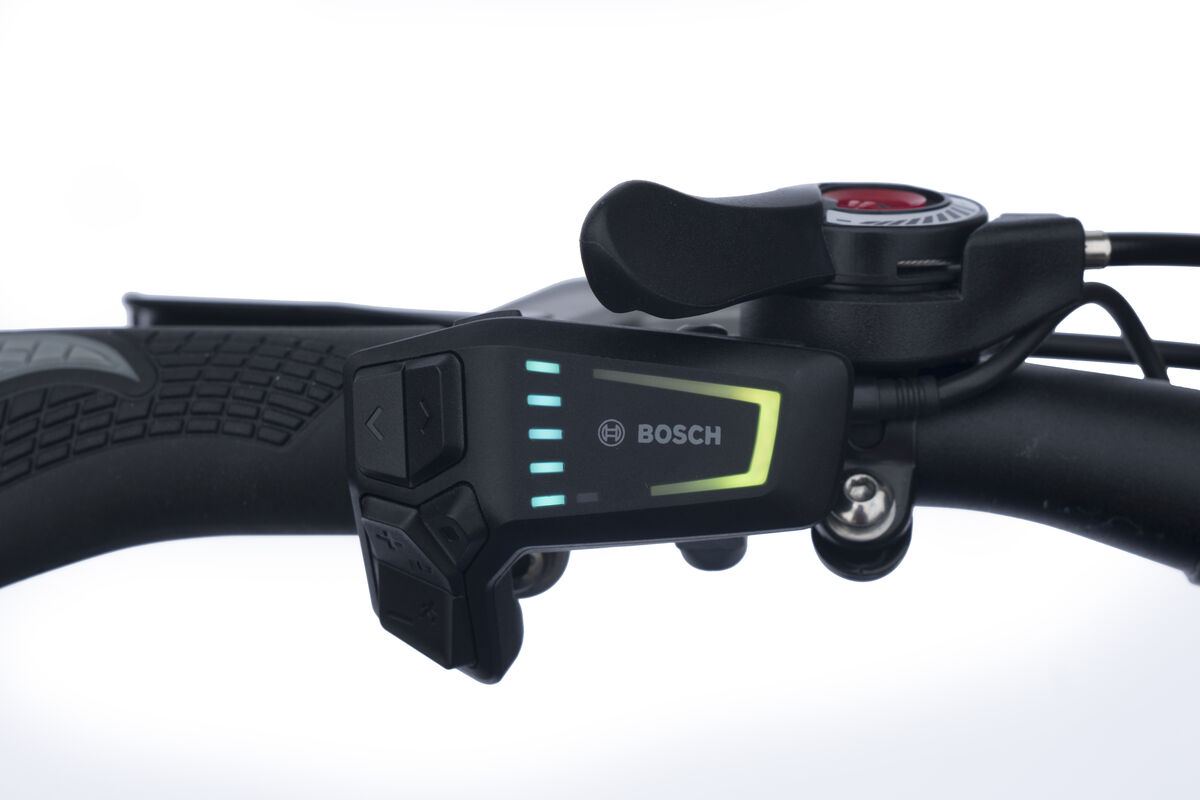

Built in North Yorkshire, and finished with top quality components including the new Bosch Smart system with a Kiox 300 controller.

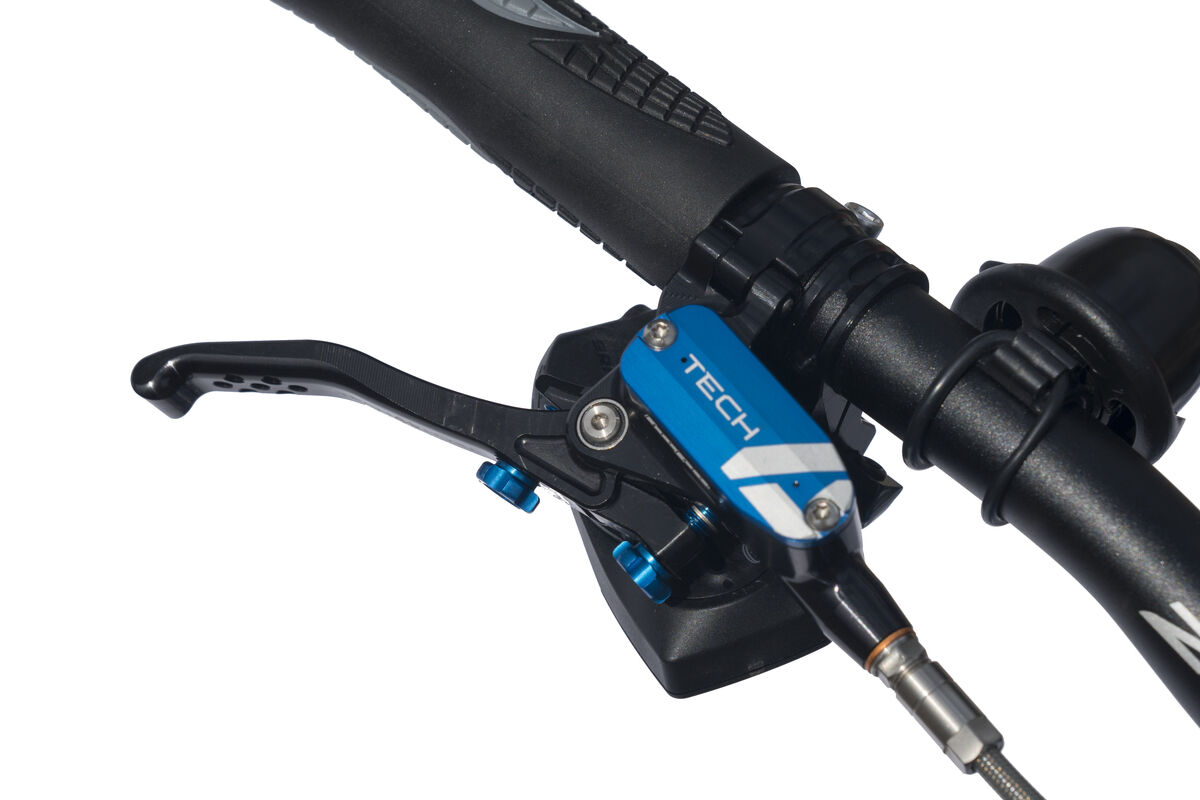

This model has Sram wireless gearing fitted and the most amazing Hope hydraulic brakes.

Wheels size 700c.

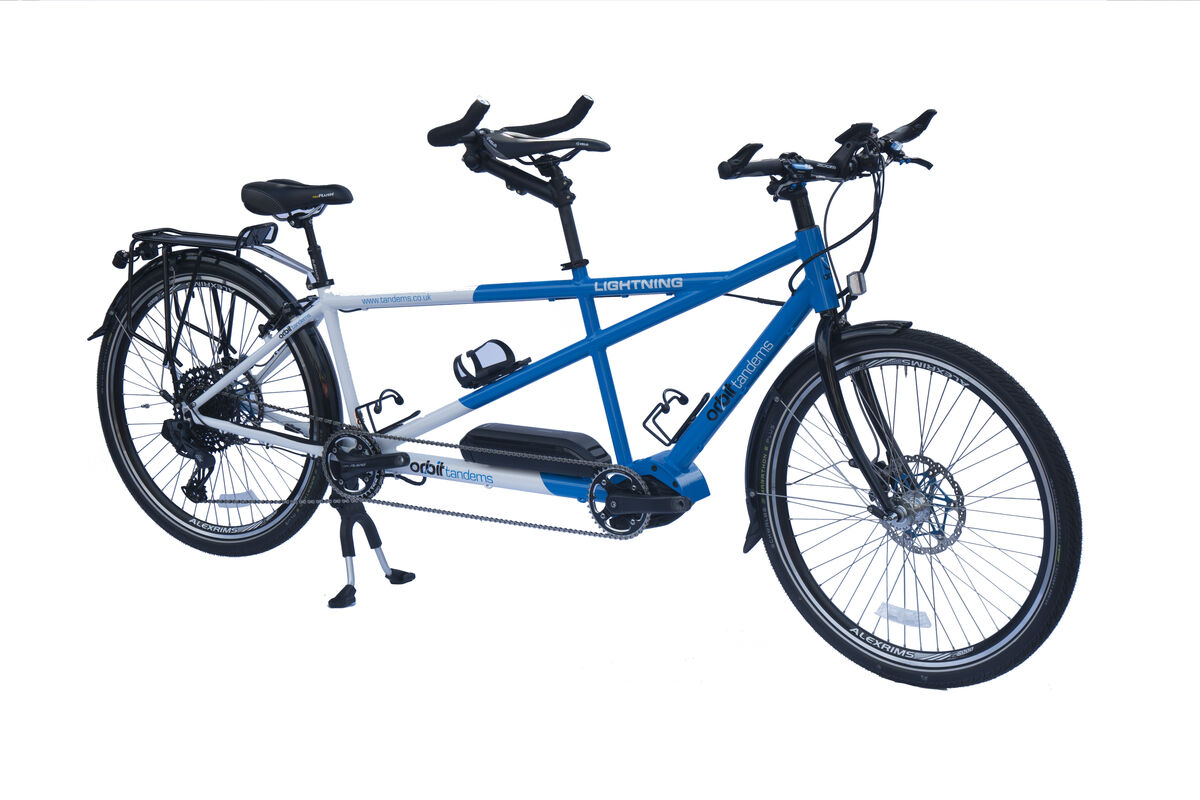

Tandem pictured is the Shimano 12 speed model, new photo to follow soon.
Specifications
Ask Us
Reviews
Related
Options 19/15" Blue/white
20/16" Blue/white
22/18" Blue/white
Frame Orbit lightweight aluminium
Forks Orbit full chromoly steel disc
Rear Derailleur Sram GX Eagle wireless
Front Derailleur None
Shifters Sram GX Eagle AXS 12 speed right hand shift lever
Chainset (Pilot) Orbit 170mm crank length with Bosch Perfomance Line CX Smart motor
Chainset (Stoker) Shimano Alivio 170mm crank length 42 tooth
Bottom Bracket (Pilot) Alloy eccentric & external cups
Bottom Bracket (Stoker) External cups
Chain (Crossover) KMC E1 nickel plated 160 link
Chain (Rear) Sram GX Eagle 12 speed
Cassette 12 speed Sram Eagle 10-52
Pedals (Pilot) Alloy touring with strapless toe cups
Pedals (Stoker) Alloy touring with strapless toe cups

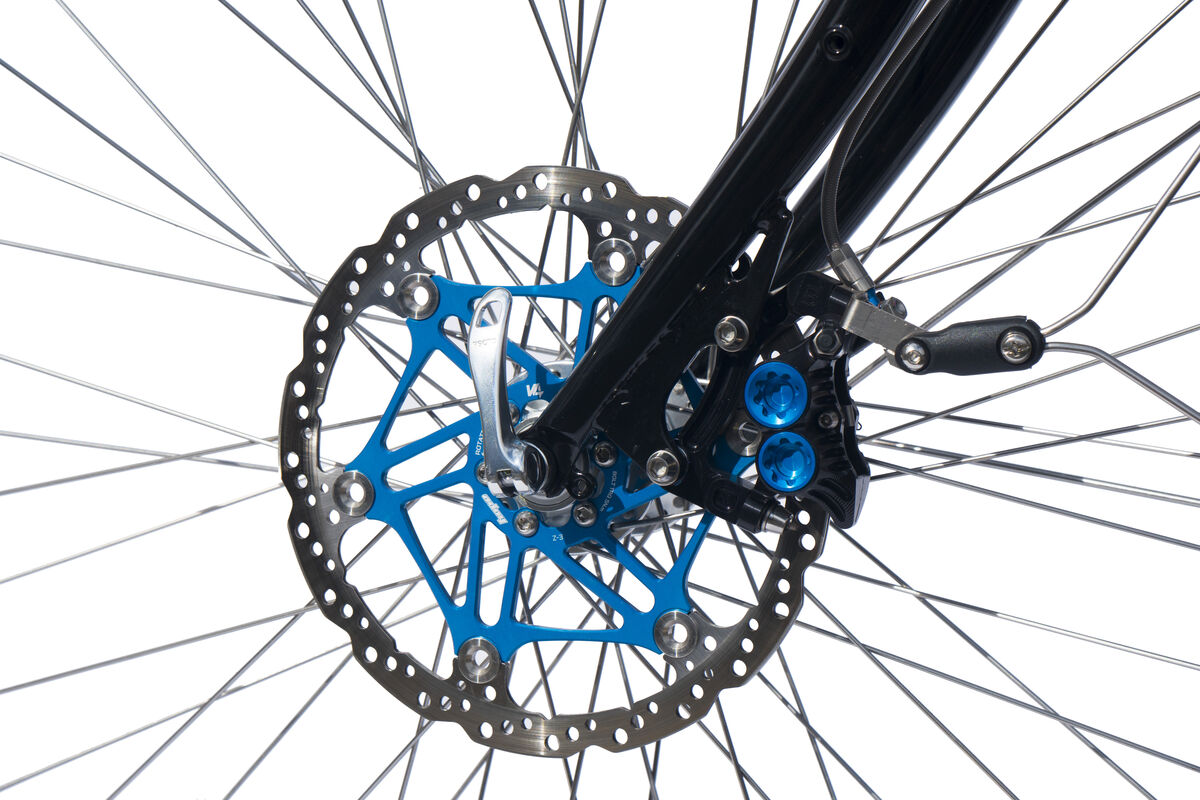

Front Brake Hope hydraulic Tech 4 V4 with 203mm vented rotor and braided hose
Rear Brake Hope hydraulic Tech 4 V4 with 203mm vented rotor and braided hose
3rd Brake Shimano V brake, controlled from the front handlebars with Shimano friction lever
Brake Levers Hope
Front Hub Halo large flange, cartridge bearing, 6 bolt disc 48 hole
Rear Hub Orbit heavy duty with XD hub body, large flange, cartridge bearing, 6 bolt disc, 145mm OLD 48 hole
Rims Alex G6000 deep section aero
Spokes Sapim Strong butted stainless
Tyres Schwalbe Marathon E plus 700 x 35, 38 or 47c
Headset Tange 1 1/8" semi intergated, cartidge bearing
Stem (Pilot) Satori 31.8mm ahead
Stem (Stoker) Orbit adjustable, 160mm to 200mm
Handlebars (Pilot) Zoom black riser, 31.8 clamp size
Handlebars (Stoker) Black alloy stoker bars, 25.4 clamp size, 49cm external width & 4.5cm stoker riser
Saddle (Pilot) Velo sport
Saddle (Stoker) Velo plush comfort touring
Seatpost (Pilot) Black alloy, 400mm x 27.2
Seatpost (Stoker) Elegance suspension seat post 40mm travel
Grips (Pilot) Wave ergo lock-on with integrated bar ends
Grips (Stoker) Velo black cork bar tape with under bar gel
Pannier Rack (Front) -
Pannier Rack (Rear) Black alloy 3 leg
Bottle Cages 2 alloy
Mudguards Black or silver with stainless steel fittings

Prop stand included
Extras Every Orbit Tandem is built to order, so should you wish to change any part of the specification please get in touch.

Planning a trip? Additional batteries are available to hire please ask for further details.
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
